VDO Coolant temperature sender 120°C - 1/2-14 NPTF
search
  • VDO Coolant temperature sender 120°C - 1/2-14 NPTF
  • Veratron B001999 Coolant temperature sensor 120°C - 1/2-14 NPT
  • Veratron B001999 Coolant temperature sensor 120°C - 1/2-14 NPT

Veratron B001999 Coolant temperature sensor 120°C - 1/2-14 NPT

€17.42 (tax incl.)

€14.40 tax excl.

Part-number:

Veratron B001999

  • Temperature range: +40 °C to +120 °C
  • Thread: 1/2-14 NPT
  • Sender resistance range: 287.4 - 22.7 Ohm
  • Sensor signal: 2-pole insulated return
  • No warning contact
Logistical information:
OrderableClick here for detailed information.
  • Ean Code: 7640190290657
  • Weight: 0.05kg
Quantity

Description coolant temperature sender:

VDO Veratron B001999 Full technical specifications:

Mechanical features:

Temperature measuring range: +40 °C to +120 °C
Minimum - Maximum operating temperature: -40 °C to +150 °C
Thread: 1/2-14 NPT

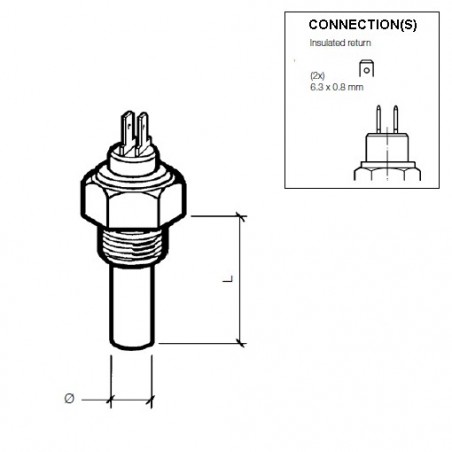

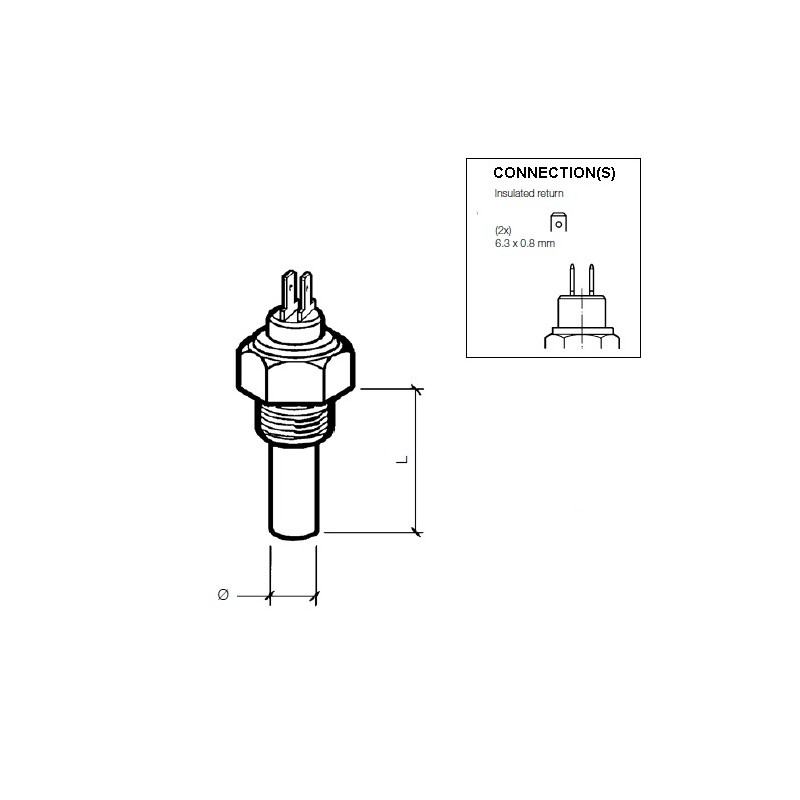

Sender element length + thread (L): 28.5 mm
Sensor diameter: 11 mm
Torque: 30 Nm
Temperature medium: Coolant - Water - Air - Engine oil - Transmission oil - Fuel

Electrical features:

Operating voltage: 6 - 24 V DC
Resistor range: 287.4 - 22.7 Ohm
Temperature sensor signal: Dual-Pole insulated return
Warning contact: None
Optional warning contact: VDO A2C59510886 Makepoint Switch
Temperature sender connector: AMP Male 6.3 x 0.8 mm
  • Veratron B001999 Temperature sender
  • VDO Sensors are - unless otherwise noted - delivered without connecting material
VDO Continental I
B001999

Data sheet

Category
Temperature sensors
Analogue signal
287.4 - 22.7 Ohm
Operating voltage
6 - 24 Volt DC
Part status - Delivery time
Orderable
Packaging
VDO Sensor retail package
Functionality
Coolant temperature
Communication
Analog
Signal output:
287.4 - 22.7 Ohm
Sensor signal
Insulated return
Sensor connector
AMP Male 6.3 x 0.8 mm
Thread
1/2" - 14 NPTF Male
Connector type
AMP Blade 6.3 x 0.8 mm
Temperature measurement range
40°C - 120°C and 100°F - 250°F

Specific References

EAN13
7640190290657
MPN
B001999
