Veratron B002003 Oil temperature sensor 150°C - 1/2-14 NPT
€17.42
(tax incl.)
€14.40 tax excl.
Part-number:
Veratron B002003
- Temperature range: +50°C to +150°C
- Thread: 1/2-14 NPT
- Sender resistance range: 322.8 - 18.6 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
Logistical information:
- Ean Code: 7640190290695
- Weight: 0.04kg
Description engine- and transmission- oil temperature sender:
Veratron B002003 Full technical specifications:
Mechanical features:
| Temperature measuring range: | +50°C to +150°C |
| Minimum - Maximum operating temperature: | -40 °C to +180 °C |
| Thread: | 1/2-14 NPT |

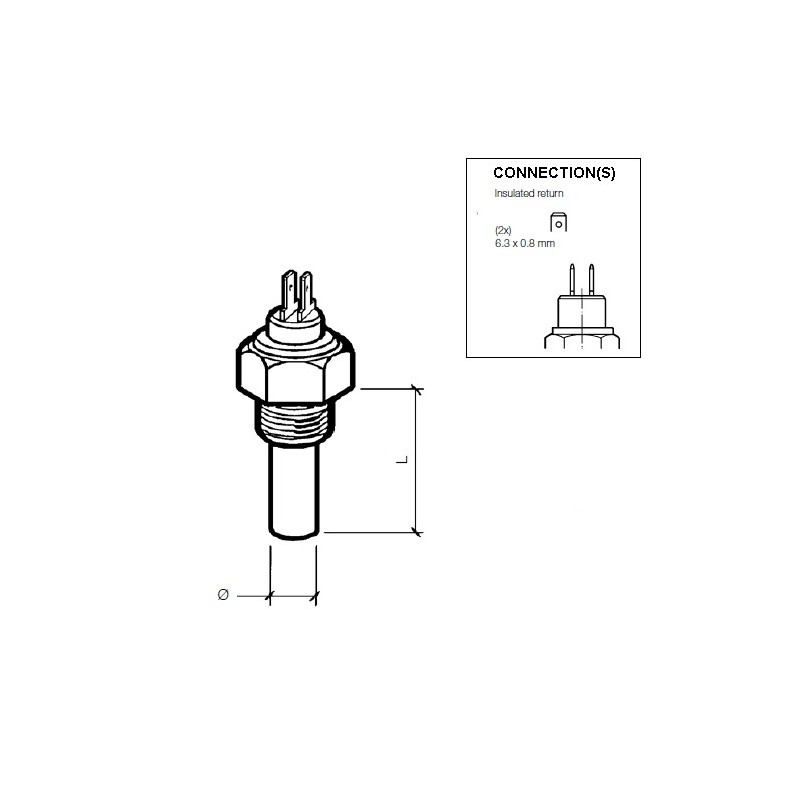

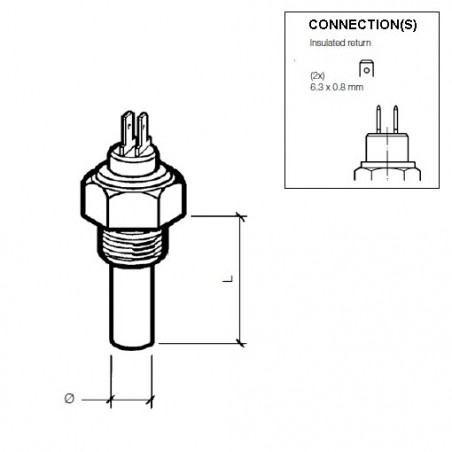

| Sender element length + thread (L): | 28.5 mm |
| Sensor diameter: | 11 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 322.8 - 18.6 Ohm |
| Temperature sensor signal: | Dual-Pole insulated return |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
- Veratron B002003 Temperature sender
- Veratron Sensors are - unless otherwise noted - delivered without connecting material
B002003
Data sheet
- Category
- Temperature sensors
- Analogue signal
- 322.8 - 18.6 Ohm
- Operating voltage
- 6 - 24 Volt DC
- Part status - Delivery time
- Orderable
- Packaging
- VDO Sensor retail package
- Functionality
- Oil temperature
- Communication
- Analog
- Signal output:
- 322.8 - 18.6 Ohm
- Sensor signal
- Insulated return
- Sensor connector
- AMP Male 6.3 x 0.8 mm
- Thread
- 1/2" - 14 NPTF Male
- Connector type
- AMP Blade 6.3 x 0.8 mm
- Temperature measurement range
- 50°C - 150°C and 100°F - 300°F
Specific References
- EAN13
- 7640190290695
- MPN
- B002003
Veratron B002003
- Temperature range: +50°C to +150°C
- Thread: 1/2-14 NPT
- Sender resistance range: 322.8 - 18.6 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
