Veratron Pressure sender 0-10 Bar - 1/8"-27NPT
€39.33
(tax incl.)
€32.50 tax excl.
Part-number:
Veratron B002008
- Pressure range: 0 to 10 Bar
- Pressure range: 0 to 145 psi
- Thread: 1/8" - 27NPT
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
Logistical information:
- HS Code: 90269000
- Ean Code: 7640190290749
- Weight: 0.12kg
Description engine oil pressure sender:
Veratron B002008 technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 5 Bar 0 - 72,5 PSI 0 - 1000 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | 1/8"-27NPT |

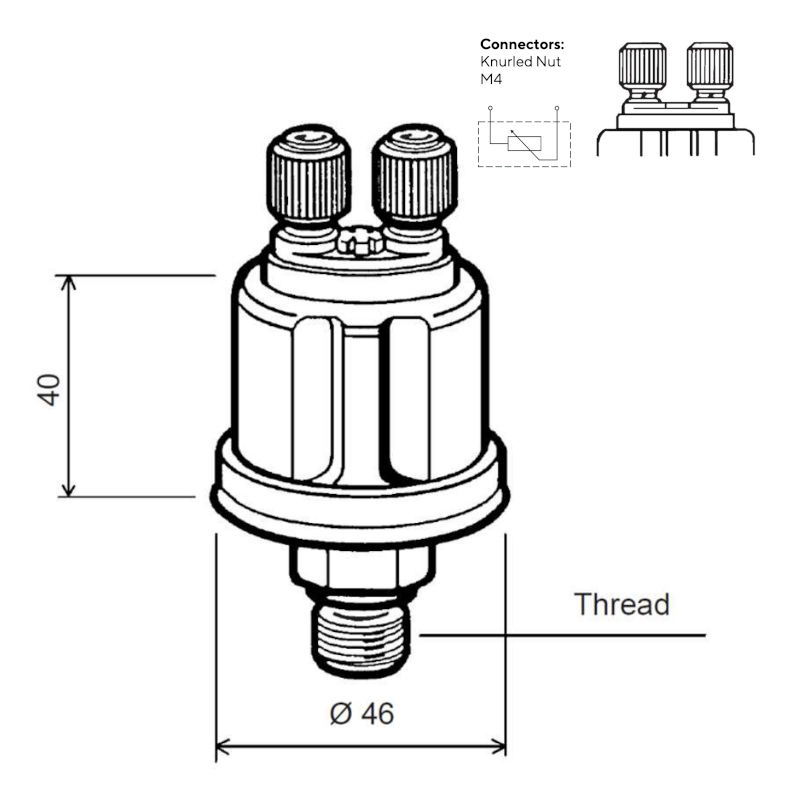

| Length thread + nut (L1): | 40 mm |
| Thread length (L2): | 10 mm |
| Torque: | 30 Nm |
| Operating temperature: | -25 °C to +120 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 5 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 Plastic knurled nut (2x) |
Retail package:
- Veratron B002008 Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
B002008
Data sheet
- Category
- Pressure senders
- Analogue signal
- 10 - 184 Ohm
- Operating voltage
- 6 - 24 Volt DC
- Part status - Delivery time
- Orderable
- Packaging
- VDO Sensor retail package
- Functionality
- Engine oil pressure
- Communication
- Analog
- Signal output:
- 10 - 184 Ohm
- Sensor signal
- Insulated return
- Sensor connector
- M4 Plastic knurled nut
- Thread
- 1/8" - 27 NPTF Male
- Connector type
- M4 Kunststof kartelmoer
Veratron B002008
- Pressure range: 0 to 10 Bar
- Pressure range: 0 to 145 psi
- Thread: 1/8" - 27NPT
- Sender resistance range: 10 - 184 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
