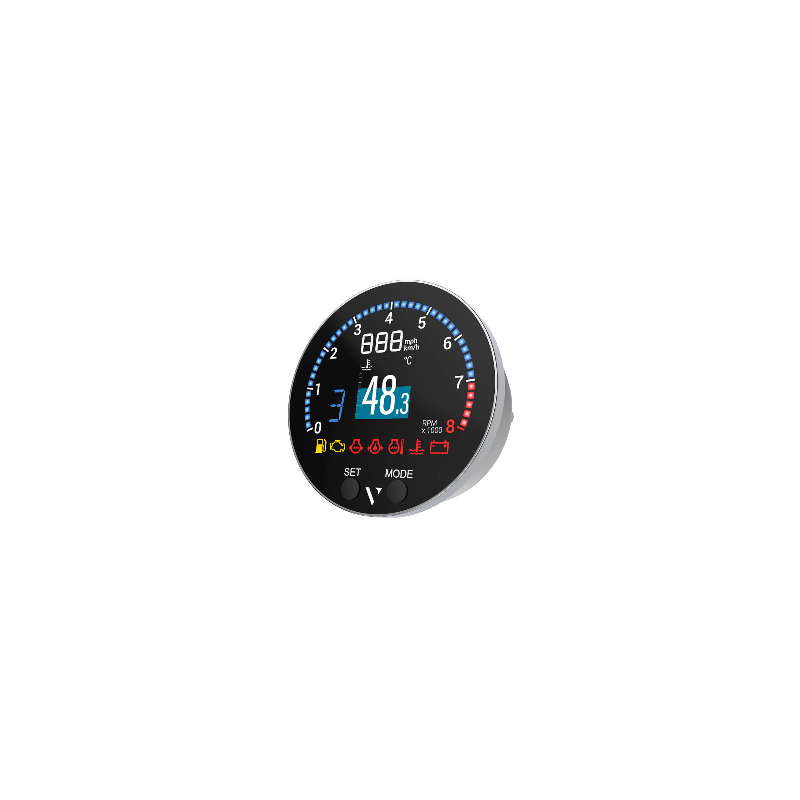

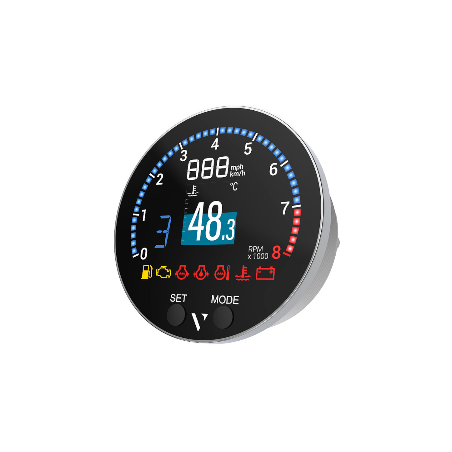

Veratron VMH 35 - 85 mm Multi functional display 12V For Suzuki
€301.29
(tax incl.)
€249.00 tax excl.
Part-number:
Veratron VMH 35 Suzuki B002040
- New generation sun-readable color hybrid display
- Intelligent Battery Sensor (IBS) port
- 2x analog resistive input (0-400 Ω programmable)
- Analog to NMEA 2000 gateway
- Integrated high-performance GNSS receiver
Logistical information:
- HS Code: 90291010
- Ean Code: 7640178729773
- Weight: 0.50kg
ELEVATE YOUR BOATING EXPERIENCE WITH THE VMH 35 SUZUKI
Revolutionize the way you monitor your boat's performance with the Suzuki* VMH 35! Designed with a sleek, modern aesthetic, this multifunctional digital display offers accurate, real-time data for boats equipped with Suzuki* outboard engines, whether they have native NMEA 2000® connectivity or not.
Plug and Play – The VMH 35 Suzuki* works effortlessly with multiple Suzuki* engine series and comes with a dedicated harness, Sumitomo connectors, and several input options for comprehensive monitoring.
Get all the essential information about your engine's performance and status. Seamless Integration: Works effortlessly with various Suzuki* engine series. Reliable Connectivity: Comes with a dedicated wiring harness and original Suzuki connectors for hassle-free installation. Navigation: with embedded high performance GNSS receiver.
With the Suzuki* VMH 35, you can ensure complete integration and reliable data at all times, making your boating experience smoother and more enjoyable.
Functional Description VMH35 Multi function display (Master):
Supported Suzuki* Engine Models:
| DF40A-60A series |
| DF70A-100B series |
| DF100C-140B series |
| DF150A-200A series |
| DF250AP-300AP series |
| DF300B-350A series |
Veratron VMH 35 Suzuki B002040 Specificaties:
Dimensions and Fitting of the Veratron VMH 35 Suzuki B002040
| Dimensions Mounting - Outer: | Ø 85mm / 3,375 Inch - Ø100mm / 9,74 Inch |
| Mounting Depth: | 65mm / 2,56 Inch |
| Panel thickness with spinlock nut: | 1mm - 15mm : 0,4 Inch - 0,59 Inch |
| Panel thickness with Stud Bolts mount: | Stud Bolts mount not possible |
| Panel thickness Flushmount: | Flushmount not possible |
| Active area: | Ø 83 mm (optically bonded display) |
| Central display: | 36,6mm / 1.44”, 128 x 128 Pixel |
| Ring: | Brushed stainless stee |
| Buttons: | 2 silicon buttons |
| Operating temperature: | ‑ 20 °C to 60 °C |
| Storage temperature: | ‑ 30 °C to 80 °C |
| Plugs: | Molex MX‑150, 12 pins DeviceNet M12, 5 pins |
Techical Specifications Veratron VMH 35 Suzuki B002040:
| Range RPM: | 0 - 8000 RPM |
| Max RPM: | 8000 RPM |
| Operating voltage: | 12 VDC |
| Voltage range: | 9 – 16 VDC |
| Power consumption: | ≤ 15 mA (normal mode) ≤ 120 μA (sleep mode) |
| GNSS Systems: | GPS, GLONASS, Galileo |
| GNSS Antenna: | Integrated, 10 Hz, 72 Channels |
| Tracking Sensitivity: | 165 dBm |
| Time to first fix (hot start): | 1s |
| Time to first fix (cold start): | 30s |
| Position accuracy: | 2,5m |
| Velocity accuracy: | 0,05m/s |
| Heading accuracy: | 0,3° |
| Input VMH35 B00085501 Multi display (Master) | 1x NMEA 2000 input 1x LIN bus 1x Frequency analog input (RPM) 2x Analog input |
| Outputs: | NMEA2000 EasyLink Warning contact Max 500mA non inductive (NO) |
| Lens: | Mineral glass |
| Protection class: | IP X7 |
| Flammability: | UL94 compliant |
TFT Displayed Data Veraton VMH 35 Suzuki B002040:
| Engine Speed (RPM) | Ammeter | Clock |
| Fuel Level | Battery Voltage | Hour Counter (Total + Trip) |
| Fuel Consumption | Battery State of Charge | Trip Distance |
| Coolant Temperature | Battery State of Health | Total Fuel Used |
| Coolant Pressure | Battery Autonomy | Total Fuel |
| Engine Oil Temperature | Battery Temperature | Freshwater Level |
| Engine Oil Pressure | Trim | Wastewater Level |
| Boost Pressure | GPS Position | Seawater Temperature |
| Rudder Angle | Course Over Ground | Depth |
Additional Displayed Data:
| Engine Speed (RPM) | Gear position |
| Boat Speed (SOG or STW) | 6 x Alarm telltales |
Packaging Content of Veratron VMH 35 Suzuki B002040:
- Veratron VMH 35 Suzuki B002040 Mutifunction display (Master)
- Central spinlock nut 85mm
- Safety and Installation Instructions
- Wire Harness B001066
*This product is designed to be compatible with Suzuki engines. However, it is not manufactured, endorsed, or approved by Suzuki Motor Corporation. Veratron AG is an independent company with no affiliation or relationship with Suzuki Motor Corporation.
B002040
Data sheet
- Installation hole size
- 85 mm - 3 3/8 Inch
- Lens
- Mineral glass - Anti-fog
- Category
- Multifunction instruments
- Application
- Veratron Engine monitoring
- Analogue signal
- 2 Analog inputs
- IP Class front
- IPX9K-ISO 20653
- Operating voltage
- 12 Volt DC
- Part status - Delivery time
- Orderable
- Packaging
- Veratron VDO Instrument retail
- Functionality
- Multifunction programmable
- Warning light
- Without
- Communication
- NMEA 2000
Veratron EasyLink 2 - Mounting
- Central Spinlock nut 85mm
- IP Class rear
- IPX9K-ISO 20653 with Connector
- NMEA Standard
- NMEA 2000 - IEC 61162-3
- Data connector type
- NMEA 2000 Micro-C M12
- Power supply connector type
- Molex MX150
- Tacho Measurement range
- 0 - 7.000 RPM
Veratron VMH 35 Suzuki B002040
- New generation sun-readable color hybrid display
- Intelligent Battery Sensor (IBS) port
- 2x analog resistive input (0-400 Ω programmable)
- Analog to NMEA 2000 gateway
- Integrated high-performance GNSS receiver
