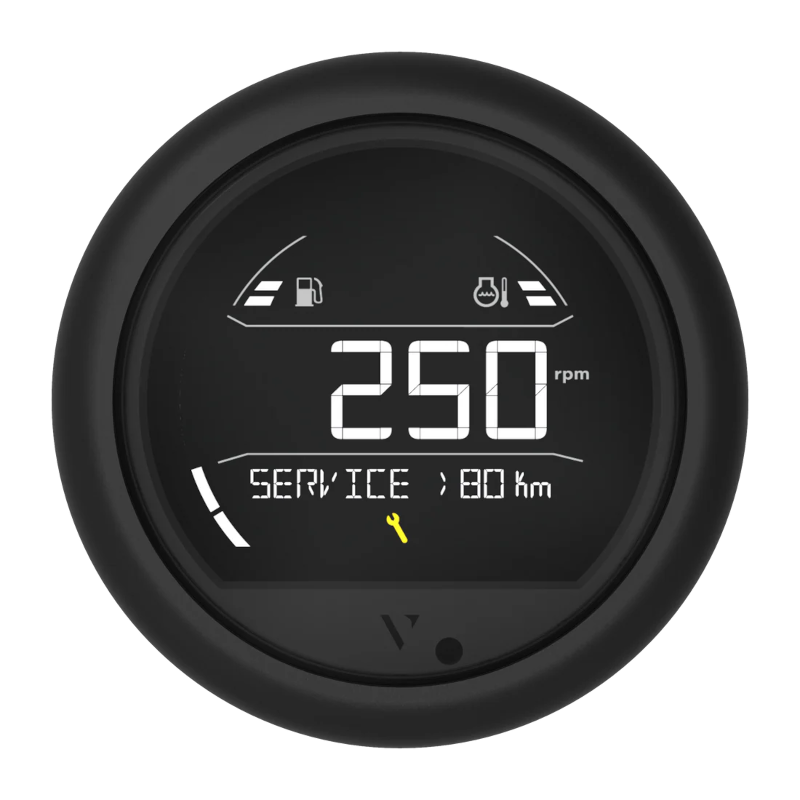

Veratron VL digitale toerenteller zwart 85 mm ronde rand
€ 156,09
(incl. btw)
€ 129,00 excl. btw.
Part-number:
Veratron B00205802
- Kleur: Zwart
- Diameter paneelopening: 85 mm - 3 3/8"
- Bereik: 0 tot 9,999 RPM
- Verpakking 1 toerenteller
- Opvolger van ViewLine-toerentellers
Logistical information:
- Ean Code: 7640190290954
- Weight: 0.25kg
Description VL Tachometer:
Veratron ViewLine B00205802 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 80 - 85 mm - 3 3/8 Inch and 93 mm - 3 2/3 Inch |
| Installation depth: | 62.5 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Power supply:
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Design:
| Model: | Veratron VL Digital |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Technical Data:
| Display | IBN color display |
| Front Lens | PMMA single lens |
| Mounting | Spinlock Nut; panel thickness 0.5mm – 20mm |
| Protection Class (Front) | IP67 (in nominal position) |
| Protection Class (Rear) | IP52 (in nominal position) |
| Connector | 8/14 pin TE MQS connector system |
| Nominal voltage | 12 / 24V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Analog inputs | 2 x Frequency (one supporting Hall effect sensors) 2 x Resistive 1 x 0-5V (with 5V output for sensor feeding) 7 x Telltale |
| Outputs | 2 x Alarm with programmable hysteresis 1 x 5 Volt for sensor feeding |
| CAN port | SAE J1939 protocol with configurable baud rate |
| Wireless interface | AirWave ready for configuration via App |
Retail package:
- Veratron VL Digital Black B00205802 Multifunction Tachometer
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 & 14 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron RPM sender not included
B00205802
Datasheet
- Inbouw gatmaat
- 80 mm - 3 1/8 Inch tot 85 mm - 3 3/8 Inch
- Kleur
- Zwart
- Lens
- Kunststof enkel ontspiegeld
- Frontring model
- Zwart rond
- Categorie
- Toerentellers Digitaal Multifunctioneel
- Serie
- Veratron VL Digital
- Toepassing
- Veratron Motorcontrole
- Analoog signaal
- Tacho impuls signaal
- IP Klasse front
- IP67-IEC 60529
- Voedingsspanning
- 12 - 24 Volt DC Tyco 8-Pins
- Artikel status - Levertijd
- Bestelbaar
- Verpakking
- Veratron VDO Instrument retail
- Functionaliteit
- Toerental - RPM
- Frontring verwisselbaar
- Ja - Clip-on
- Waarschuwings indicatie
- Rode LED - Programmeerbaar
- Communicatie
- CANBus J1939 en analoog
- Meterschaal
- Enkel
- Connector type
- Tyco 8 en 14-Pins MQS
- Montage
- Centrale Spinlockmoer 85mm
- Schaalverlichting kleur
- Amber LED niet dimbaar
- IP Klasse achterkant
- IP52-IEC 60529
- Toerental Meetbereik
- 0 - 3.000 RPM
Specifieke referenties
- ean13
- 7640190290954
- MPN
- B00205802
