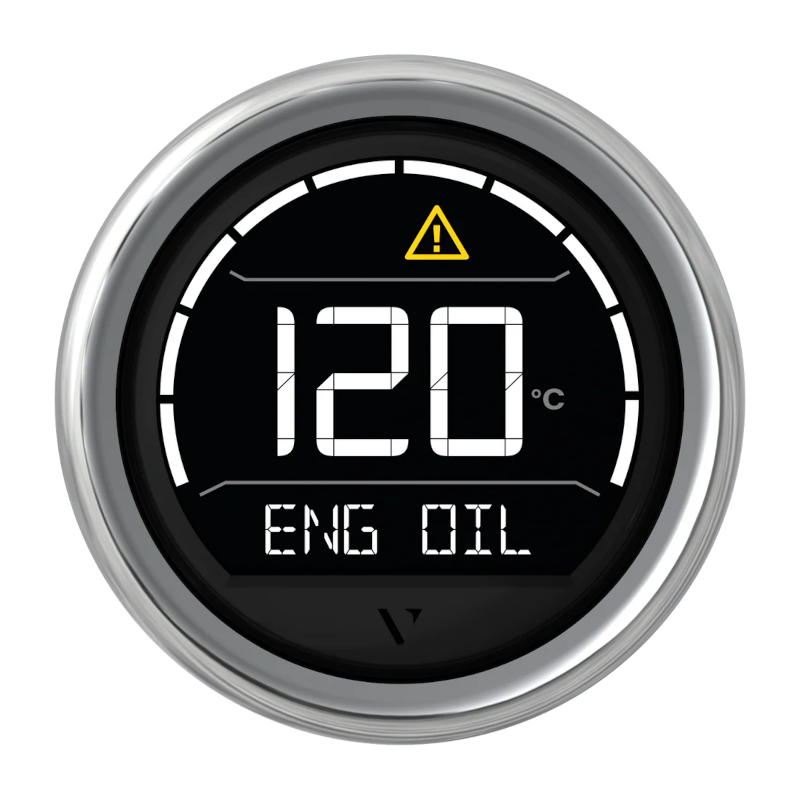

Veratron VL Digital Multifunction instrument Black 52mm Round Chrome Bezel
€64.13
(tax incl.)
€53.00 tax excl.
Part-number:
Veratron B00205704
- Colour: Black
- Sunlight Readable display
- Custom alarm text
- Panel hole diameter:52mm - 2 1/16"
- Screen dimension: 37 mm
- Successor of ViewLine 52mm instruments
Logistical information:
- Ean Code: 7640190290923
- Weight: 0.25kg
Description VL Digital Multifunction Instrument:
Veratron VL Digital B00205704 Full technical specifications:
Supported Configurations*
| ENGINE | BATTERY | VEHICLE |
|---|---|---|
| Boost Pressure | Battery Voltage | Brake Pressure |
| Coolant Pressure | Ammeter | Hydraulic Oil Temperature |
| Coolant Temperature | Battery SOC | Hydraulic Oil Pressure |
| Air Intake Temperature | Energy consumption | PTO 1 and PTO 2 |
| Engine Load | Remaining range | TANKS |
| Exhaust Temperature | Alternator Potential | Fuel Level |
| Engine Oil Temperature | WEATHER | Fresh Water Level |
| Engine Oil Pressure | Outside Air Temperature | DEF / Blue Level |
| Transmission Oil Temperature | Fuel Temp | |
| Transmission Oil Pressure | Fuel Pressure |
* Only 1 configuration per instrument
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 53mm +/- 0.5mm |
| Installation depth: | 58.5mm +/- 1mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | Not Possible |
| Flushmount: | Optional kit A2C59510864 |
Power supply:
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Design:
| Model: | Veratron VL Digital |
| Lens: | PMMA single lens |
| Standard bezel: | Round chrome (Interchangeable) |
Technical Data:
| Display | IBN color display |
| Front Lens | PMMA single lens |
| Mounting | Spinlock Nut; panel thickness 0.5mm – 20mm |
| Protection Class (Front) | IP67 (in nominal position) |
| Protection Class (Rear) | IP52 (in nominal position) |
| Connector | 8pin TE MQS connector system |
| Nominal voltage | 12 / 24V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Analog inputs | 1 x Resistive |
| Outputs | 1 x Alarm 500mA with programmable hysteresis |
| CAN port | SAE J1939 protocol with configurable baud rate |
| Wireless interface | AirWave ready for configuration via App |
Retail package:
- Veratron VL Digital Black B00205704 Multifunction Instrument
- Spinlock nut
- Bezel round chrome (Interchangeable)
- Adapter cable with 8 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- No sensors included
B00205704
Data sheet
- Installation hole size
- 52 mm - 2 1/16 Inch
- Color
- Black
- Lens
- Plastic single nonreflective
- Bezel model
- Chrome round
- Category
- Multifunction instruments
- Serie
- Veratron VL Digital
- Application
- Veratron Engine monitoring
- Analogue signal
- 0 - 400 ohm (Programmable)
- IP Class front
- IP67-IEC 60529
- Operating voltage
- 12 - 24 Volt DC Tyco 8-Pins
- Part status - Delivery time
- Orderable
- Packaging
- Veratron VDO Instrument retail
- Functionality
- Multifunction programmable
- Bezel Interchangeable
- Yes - Clip-on
- Warning light
- Red LED - Programmable
- Communication
- CANBus J1939 and Analogue
- Dial scale
- Single
- Connector type
- Tyco 8-Pins MQS
- Mounting
- Central Spinlock nut 52mm
- Dial illumination
- Amber LED not dimmable
- IP Class rear
- IP52-IEC 60529
Specific References
- EAN13
- 7640190290923
- MPN
- B00205704
