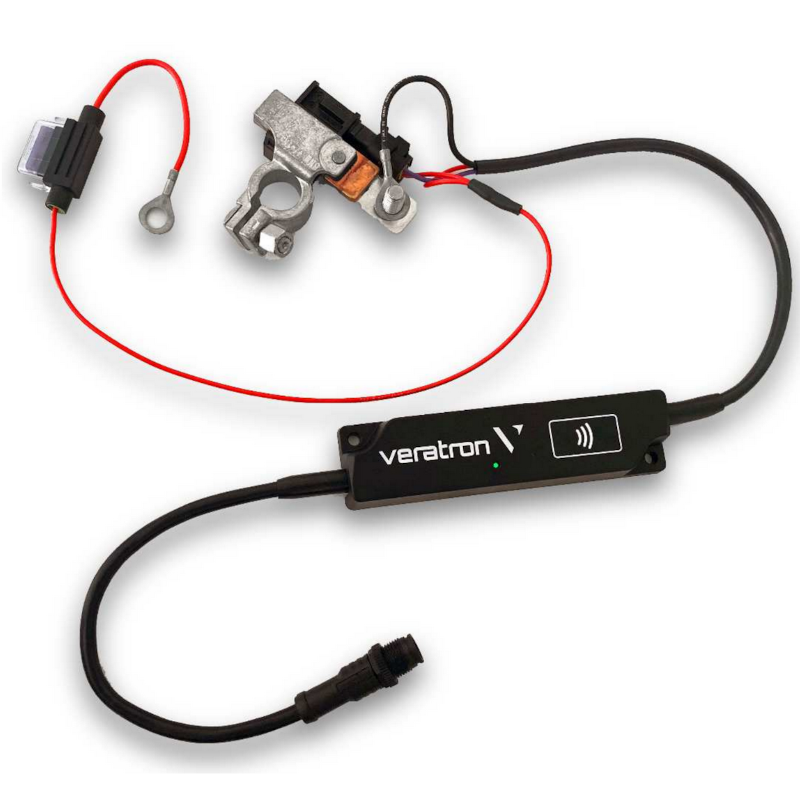

Intelligent Battery Sensor (IBS) 12V 500 Ah
€ 272,61
(incl. btw)
€ 225,30 belastingexcl.
Onderdeelnummer:
Veratron B00042502
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Voltage
- Battery Current
- Battery Temperature
- Gel, AGM, Flooded (Lead)
Logistieke informatie:
- Ean Code: 7640178729797
- Gewicht: 0.50kg
Description Intelligent Battery Sensor:
Veratron B00042502 Full technical specifications:
Electrical features:
| Operating voltage: | 6 - 16.5 V DC |
| Operating Current (permanent): | +/- 200A |
| Maximum current: | ± 1500 A (500 ms) |
| Power consumption: | ≤ 15 mA (normal mode) ≤ 120 µA (sleep mode) |
| Max battery capacity: | 500 Ah |
| Operating temperature: | -40°C to 115°C |
| Supported battery types: | Gel, AGM, Flooded (Lead) |
| Output signal: | LIN 2.0 or higher NMEA2000 |
| Grounding bolt: | M6 |
Delivered data:
| State of Charge (SOC): | Current charge status of the battery, defined in percentage |
| State of Health (SOH): | Ageing status of the battery, loss of capacity over time |
| Autonomy: | Estimated battery duration based on the instantaneous current consumption of the system |
| Battery Voltage | |
| Battery Current | |
| Battery Temperature |
NMEA PGNS:
| DC Detailed Status: | 127506 |
| Battery Status: | 127508 |
| Battery Configuration Status: | 127513 |
Protection and Certification:
| Protection class: | IP X9/K (LinkUp) IP6K7 (Sensor) |
| Flammability: | UL94 |
| Housing material: | PC-FR |
| Compliance: | CE UKCA Reach RoHS ISO8846:1990 |
Retail package:
- Veratron B00084201 Intelligent Battery Sensor
- LinkUp
- Veratron Sensors are - unless otherwise noted - delivered without connecting material
B00042502
Datasheet
- Categorie
- Intelligent Battery Sensor
- Bedrijfsspanning
- 12 volt gelijkstroom
- Status van onderdelen - Levertijd
- Stopgezet product
- Verpakking
- Veratron VDO Parts retail
- Functionaliteit
- 12 volt batterijconditie
- Communicatie
- NMEA 2000
Specifieke referenties
- ean13
- 7640178729797
- MPN
- B00042502
