Veratron VMH 35-D GPS - 85 mm Multi functional display 12V - 24V with GNSS
€358.16
(tax incl.)
€296.00 tax excl.
Part-number:
Veratron B00171101
- New generation sun-readable color hybrid display
- Intelligent Battery Sensor (IBS) port
- 1x analog resistive input (0-400 Ω programmable)
- 1x 0-5 volt sensor input
- Analog to NMEA 2000 gateway
- With GNSS Receiver
Logistical information:
- Ean Code: 7640190290466
- Weight: 0.50kg

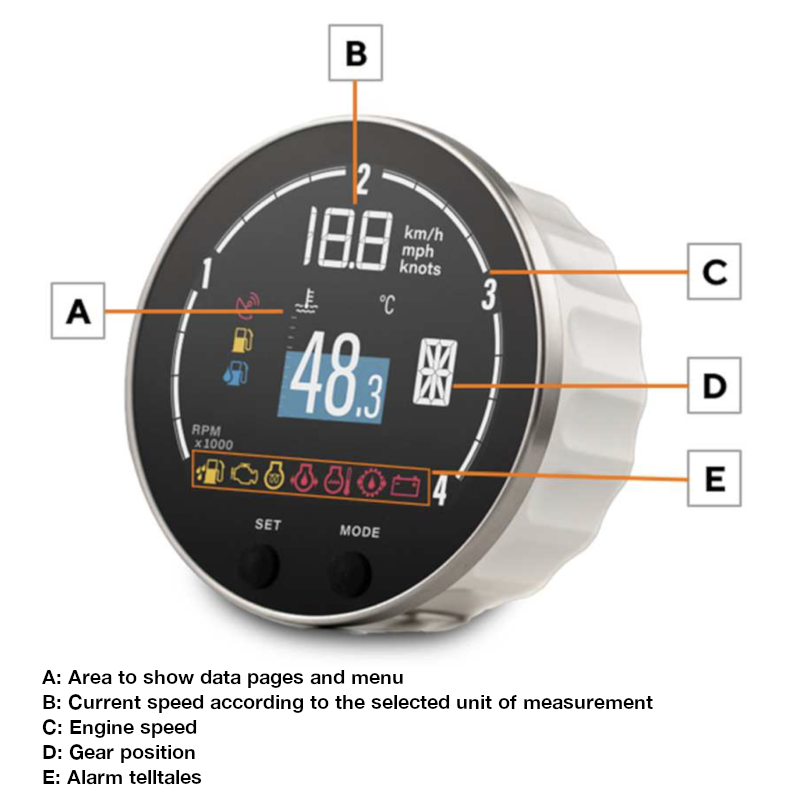

Functional Description VMH35D with GNSS Multi function display (Master):
Veratron VMH 35-D B00171101 Specificaties:
Dimensions and Fitting of the Veratron VMH35D B00171101
| Dimensions Mounting - Outer: | Ø 85mm / 3,375 Inch - Ø100mm / 9,74 Inch |
| Mounting Depth: | 65mm / 2,56 Inch |
| Panel thickness with spinlock nut: | 1mm - 15mm : 0,4 Inch - 0,59 Inch |
| Panel thickness with Stud Bolts mount: | Stud Bolts mount not possible |
| Panel thickness Flushmount: | Flushmount not possible |
| Active area: | Ø 83 mm (optically bonded display) |
| Central display: | 36,6mm / 1.44”, 128 x 128 Pixel |
| Ring: | Brushed stainless steel |
| Buttons: | 2 silicon buttons |
| Operating temperature: | ‑ 20 °C to 60 °C |
| Storage temperature: | ‑ 30 °C to 80 °C |
| Plugs: | Molex MX‑150, 12 pins DeviceNet M12, 5 pins |
Techical Specifications Veratron VMH 35-D B00171101:
| Range RPM: | 0 - 3000 or 4000 RPM (Settable) |
| Max RPM: | 4000 RPM |
| Operating voltage: | 12 / 24 VDC |
| Voltage range: | 9 – 32 VDC |
| Power consumption: | ≤ 150 mA (normal mode) ≤ 120 μA (sleep mode) |
| GNSS Systems: | GPS, GLONASS, Galileo |
| GNSS Antenna: | Integrated |
| Update rate | 10 Hz |
| Channels | 72 |
| Tracking Sensitivity: | -165 dBm |
| Time to first fix (hot start): | 1 s |
| Time to first fix (cold start): | 30 s |
| Position accuracy: | 2.5 m |
| Velocity accuracy: | 0.05 m/s |
| Heading accuracy: | 0.3 ° |
| Input VMH35 B00171101 Multi display (Master) | 1x NMEA 2000 input 1x SAE J1939 CAN input 2x Frequency analog input (RPM 0-4 kHz) 2x Analog input Resistive (0-400 ohm) |
| Outputs: | NMEA2000 EasyLink upto 16 VMH 14 Satellites Warning contact Max 500mA non inductive (NO) |
| Lens: | Mineral glass |
| Protection class: | IP X7 |
| Flammability: | UL94 compliant |
Functionality Veraton VMH-35D B00171101:
| Engine Speed (RPM) | Ammeter | Clock |
| Fuel Level | Battery Voltage | Hour Counter (Total + Trip) |
| Fuel Consumption | Battery State of Charge | Trip Distance |
| Coolant Temperature | Battery State of Health | Total Fuel Used |
| Coolant Pressure | Battery Autonomy | Total Fuel |
| Engine Oil Temperature | Battery Temperature | Freshwater Level |
| Engine Oil Pressure | Trim | Wastewater Level |
| Boost Pressure | GNSS Position | Seawater Temperature |
| Rudder Angle | Course Over Ground | Depth |
Additional Displayed Data:
| Engine Speed (RPM) | Gear position |
| Boat Speed (SOG or STW) | 6 x Alarm telltales |
Packaging Content of Veratron B00171101 VMH-35D with GNSS:
- Veratron VMH35D B00171101 Mutifunction display (Master)
- Central spinlock nut 85mm
- Safety and Installation Instructions
- Wire Harness
B00171101
Data sheet
- Installation hole size
- 85 mm - 3 3/8 Inch
- Application
- Veratron Multifunction
- Part status - Delivery time
- Orderable
- NMEA Standard
- NMEA 2000 - IEC 61162-3
- Tacho Measurement range
- 0 - 3.000 RPM
0 - 4.000 RPM - Certification
- NMEA2000
Specific References
- EAN13
- 7640190290466
- MPN
- B00171101
Veratron B00171101
- New generation sun-readable color hybrid display
- Intelligent Battery Sensor (IBS) port
- 1x analog resistive input (0-400 Ω programmable)
- 1x 0-5 volt sensor input
- Analog to NMEA 2000 gateway
- With GNSS Receiver
